Interupt request cycles

An interupt request cycle is basically a read access to the device with the only difference, that the CPU uses no /CS and therefore the chip selects have to be decoded out of the address bus. Instead of a chip select the device looks for a signal with the same meaning on its /IACK port. Figure [*] illustrates the access.

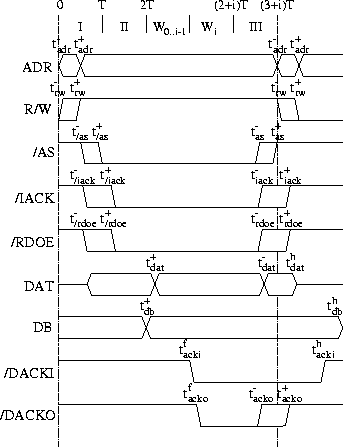

Figure: <
\begin{figure}\begin{center}\makebox{\epsfysize=100mm \epsfbox{ir-dev-tim.eps}} \end{center} \end{figure}

tex2html_comment_mark> Timing of a interupt acknowledge cycle

The differences in respect to the timing analysis only come only through a little later start of the access out of the view from the busmaster device. Because the /IACK has to be decoded out of the address bits, the activating edge of /IACK is a little later than an ordinary /CS would be. But this makes the setup conditions on that edge even more relexed and the hold time conditions have never been a problem. More precisely, we get


\begin{eqnarray*}10 = t_{avcl} &<& t_{avsa} + t_{pd}^-(i,o)[GAL] = (16,11,9)\\
(10,0) = t_{wlcl} &<& t_{raaa} + t_{pd}^-(i,o)[GAL] = (16,11,11)\\
\end{eqnarray*}


Consequently, the device will generate a later response to that starting edge, i.e.


\begin{eqnarray*}& & t_{cs}^+ + t_{cldl} + 2 \cdot t_{pd}^+(i,o)[GAL] +
t_{aist}...
...,19) > (343.4,684.4)\\
&\Rightarrow& i = ((6,7,8)(11,14,17))\\
\end{eqnarray*}


The rest of the access is completely congruent to the read access.
